INTRODUCTION

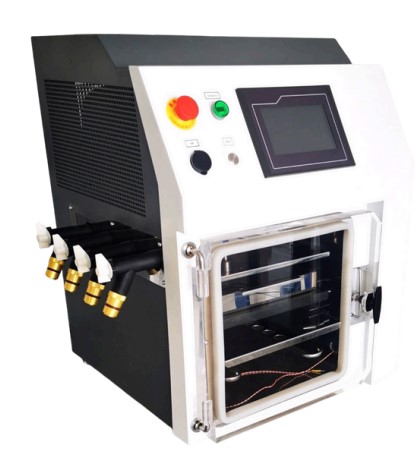

The Laboratory Programmable Freeze Dryer is designed for a wide range of applications in medicine, pharmaceuticals, biology research, chemical industries, and food production. Freeze drying helps to preserve materials for the long term by maintaining their chemical and biological characteristics after being rehydrated.
Vacuum Freeze-Drying Technology (also known as sublimation drying) freezes samples in advance and removes moisture under vacuum. This model is ideal for bulk product drying and vial drying, including various
foods such as fruits, vegetables, milk, meat, seafood, and health products.
MAIN FEATURES:
- Collector Temperature: – 85°C (-121°F)
- Conformance: CE Certified
- Plug Type: India
- Style: Benchtop
- Temperature ramp and hold programming from -55°C) to +50°C) (-67°F to +122°F) and -75°C) (-103°F) during pre-freezing
- Controls temperature to ±1°C) of set point
- Memory to store 30 programs with 16 segments each including:
-
- Number of steps
- Ramp rate
- Shelf temperature
- Hold time
- Vacuum level
-
- Full color, 7″ capacitive touchscreen with Lyo-WorksTM OS
- Real-time display of collector temperature and vacuum level
- Manual start-up buttons for collector and shelf temperature control
- Data logging in table or graph format with export via USB or Ethernet
- Vacuum pump maintenance alert
- Security lock-out feature
- Pneumatic stoppering mechanism with diaphragm and plate (No compressed gas required)
- Stoppering control knob and vacuum release control knob
- Four left side-mounted neoprene valves accommodating 1/2″ and 3/4″ flask adapters
- USB port and Ethernet connection
- Hot gas defrosts with stainless steel drain pan and silicone drain hose
- Vacuum control valve and vacuum break valve
- Stainless steel and powder-coated steel exterior
- Clear acrylic door, 1″ thick, with silicone gasket and latch
- 3/4″ OD vacuum connection with 36″ long, 3/4″ ID vacuum hose
- Language support (English)
| IG-FD-10PF | Standard type / Top press type |
|---|---|
| Optional Parameters | 1. 4 pcs of Manifold ports (with 4 rubber valves and 4 flasks) 2. Oil-free scroll pump 3. Condenser -70°C 4. tray, vacuum pump, pump connection tube, clamp, rubber valve and flask |
SPECIFICATIONS:
| Parameter | Specification |
|---|---|
| Collector Temperature | -85°C (-121°F) |
| Temperature Range | (-55°C to +50°C) (-67°F to +122°F) |
| Pre-Freezing Temperature | (-75°C)(-103°F) |
| Temperature Control Accuracy | ±1°C |
| Program Memory | 100 programs with 36 segments each |
| Display | 7″ Capacitive Touchscreen (Lyo-WorksTM OS) |
| Data Logging | USB port |
| Stoppering Mechanism | Pneumatic Stoppering Mechanism available |
| Valve Compatibility | 1/2″ and 3/4″ Flask Adapters |
| Vacuum Pump Requirement | 120 L/min, 0.002 mBar Ultimate Pressure |
| Vacuum Connection | 3/4″ OD, 36″ long Hose |
| Exterior | Stainless Steel & Powder-Coated Steel |
| Door Material | 1″ Thick Clear Acrylic with Gasket |
| Electrical Configuration | Region-Specific Plug Configurations |
| Defrost System | Hot gas defrosting |
| Language Support | English |
