INSTRUMENT OVERVIEW
Freeze drying, also known as lyophilization or vacuum sublimation drying, is an advanced dehydration process that removes moisture from frozen materials under vacuum conditions. During the process, water in the sample transitions directly from solid ice to vapor without passing through the liquid phase.
This technique preserves the physical structure, biological integrity, and chemical stability of materials, making it ideal for applications in pharmaceuticals, biotechnology, food preservation, and material science.
Freeze dryers are widely used across:
- Pharmaceutical and medical research: vaccines, biological samples, diagnostic reagents
- Biotechnology and biopharma: enzymes, proteins, antibodies
- Food and beverage industries: fruits, vegetables, dairy, and nutritional products
- Chemical and material industries: drying of temperature-sensitive compounds and chemicals

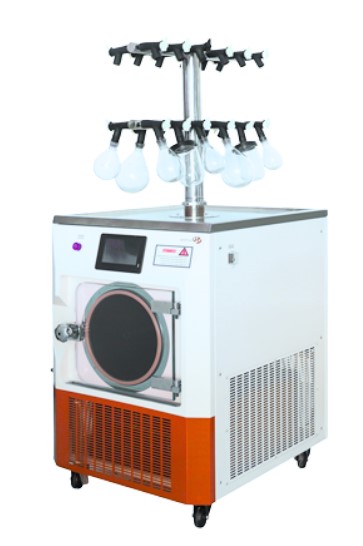

The iGene IG-81FD Freeze Dryer is a high-performance system for precise and efficient drying of biological, pharmaceutical, and chemical samples.
KEY FEATURES
- Color LCD touchscreen with real-time monitoring
- Data logging and USB export for temperature and vacuum curves
- High-speed vacuum system achieving < 5 Pa
- Stainless-steel condenser and T-shelf for durability
- Large-opening condenser with uniform ice capture
- Eco-friendly CFC-free operation
- Quick electric heating defrost system
- Floor-type, compact, and user-friendly design
SPECIFICATIONS:
| Parameter | Specification |
|---|---|
| Ice Condenser Capacity | Max. 12 kg |
| Condenser Temperature | –80°C |
| Display / Interface | LCD Touchscreen |
| Data Logging / Export | USB Export |
| Vacuum Pump Capacity / Flow Rate | 4 L/s |
| Vacuum Display | Touchscreen |
| Shelf Material / Tray Material | SS304 |
| Condenser / Coil Material | SS304 |
| Manifold Ports | 24 Ports (SS) |
| Flask Compatibility | 100–1200 mL |
| Cooling System | Air-Cooled |
| Defrosting Method | Electric Heating |
| Refrigerant Type | CFC-Free |
| Power Consumption | 1800 W |
| Voltage / Frequency / Phase | 220V / 50Hz / 1 Phase |
| Operating Temperature | Ambient ≤ 28°C |
| Dimensions (L × W × H) | 810 × 580 × (950 + 570) mm |
| Weight | 200 kg |
| Construction Material | SS304 |
| Certification | CE Compliant |
