FEATURES and SPECIFICATIONS
DESCRIPTION

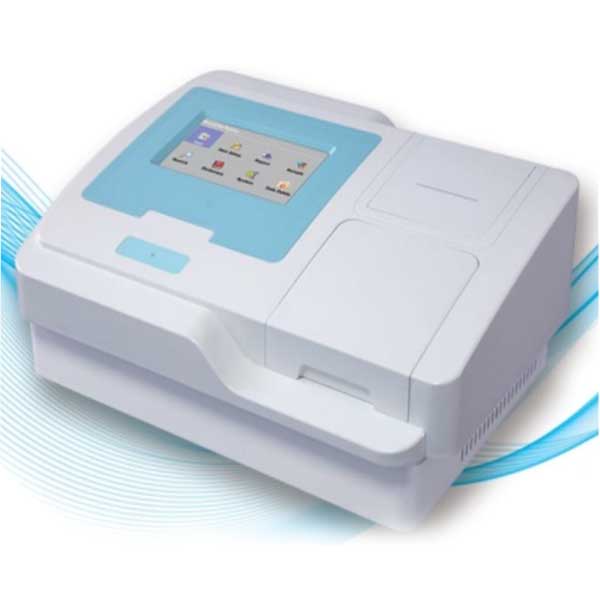

An ELISA reader is an instrument that is used to read the fluorescent, chemiluminescent, or chromogenic response of the ELISA in a 96-well plate. The instrument is designed to fit standard 96-well plates, and will provide quantitative information about the extent of the response for each individual well of the plate.
FEATURES:
- Graphical operating interface, ergonomically designed for convenience of use.
- High brightness and large size LED display, with touch screen input
- Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen
- Single board multiple tests function, performing 24 different tests at the same time just in one plate
- Single or dual wavelength measurements, comprehensive qualitative and quantitative data- evaluation functions with cut-offs, curve-fits and transformation formulas
- Proven optical system with 8 channel optical fiber scanning, auto plate centering system positions the center of the cell accurately
- Auto Lamp adjustment and auto calibration, improve the efficiency of the system and reduce the cost
- High sensitive touch screen input, and can be matched with the mouse and keyboard, support handwriting input
- Multi-forms in data output ( local, USB, network), including text file and Excel file
- Provide more than 20 different reporting formats including patient comprehensive report, support USB printers
SPECIFICATIONS:
| Plate Style | 48-hole,96-hole microplate or bar plate |
| Applicable hole | Flat, V-bottom or U-bottom |
| Wavelength Range | 400~800nm |
| Standard Filters | 405,450,492,630nm |
| Additional Filters | On request, filter wheel for up to 8 filters |
| Reproducibility | ≤0.2% |
| Shaking | Linear Shaking, 3 speeds |
| Screen | 7 Inch colour LCD |
| Interface | USB, VGA, NETWORK INTERFACE, AUDIO INTERFACE, RS-232 |
| Read Speed | Single wavelength ≤ 3s /96 holes |
| Power Supply | 100~240V, 50~60Hz |
PARAMETERS:
| Light Source | Controlled tungsten halogen lamp |
|---|---|
| Photodetector | Silicon Photodiode |
| Indication Range | 0.000~4.000OD |
| Accuracy | ±1.0% at 1.0 OD, 450nm |
| Resolution | 0.001OD |
| Stability | ±0.003OD |
| Display | 10.4 inch colour LED display, resolution 1024*600 |
| Data Storage | 2,000,000 test data, more than 500 test projects |
| Best Environment | 5℃~40℃;max humidity:80% |
| Dimensions/Weight | 460×350×197mm/10kg |
